針對物聯網、可穿戴設備、消費電子、汽車和工業應用領域電源需求持續增長的趨勢，Nexperia一直致力于提供電源IC，助力實現創新、高效的解決方案，尤其是幫助客戶降低BOM成本并提高系統性能。為此，我們面向物聯網和消費電子應用推出電池管理和能源采集解決方案，這也是我們?cè)谠擃I(lǐng)域推出的第一個產品系列。
Evaluation boards
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| NID5100 | 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode | ACT |
|
| NID5100GW | 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode | Production | |
| NID5100GW-Q100 | 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode | Production | |
| NID5100-Q100 | 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode | ACT |
|
| NID5100GW-Q100 | 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode | Production | |
| NPS1000 | 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch | ACT |
|
| NPS1000UP | 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch | Production | |
| NPS1001 | 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch | ACT |
|
| NPS1001UP | 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch | Production | |
| NPS3102 | 12 V, 2 A to 13.5 A, 17 mΩ eFuse | ACT |
|
| NPS3102AGB | 12 V, 2 A to 13.5 A, 17 mΩ eFuse | Production | |
| NPS3102BGB | 12 V, 2 A to 13.5 A, 17 mΩ eFuse | Production | |
| NPS4001 | 5.5 V, 55 mOhm load switch with current limitation | ACT |
|
| NPS4001GV | 5.5 V, 55 mOhm load switch with current limitation | Production | |
| NPS4053 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | ACT |
|
| NPS4053GH | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053GH-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053GV | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053GV-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | ACT |
|
| NPS4053GH-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053GV-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4069 | 5.5 V, 55 mOhm load switch with current limitation | ACT |
|
| NPS4069GV | 5.5 V, 55 mOhm load switch with current limitation | Production | |
| NID1100GV | 1.5 V to 5.5 V, 1 A, ideal diode with forward voltage blocking | Production | |
| NPS3005GP | 0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start | Qualification | |
| NPS3005GP-Q100 | 0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start | Qualification |
Visit our documentation center for all documentation
Leaflet (3) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |
| nexperia_leaflet_efuse.pdf | 12 V, 2 A-13.5 A (17 mΩ) eFuse for Enterprise, Communications and Storage | Leaflet | 2025-01-21 |
| nexperia_leaflet_ideal-diode.pdf | NID5100 Ideal Diode | Leaflet | 2024-08-09 |
| nexperia_leaflet_electronics_power_management_load_switch.pdf | NPS4053 load switch leaflet | Leaflet | 2024-03-29 |
Outline 3d (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

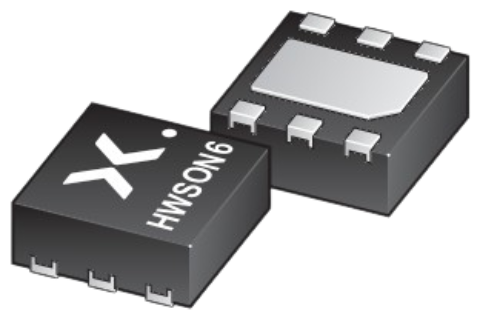

| sot8044-1_3d.png | HWSON6; SOT8044-1; Plastic thermal enhanced very very thin Small Outline packages, no leads; 6 terminals; 0.65 mm pitch; 2.0 mm x 2.0 mm x 0.75 mm body | Outline 3d | 2025-04-10 |
